NMR20 Accessories



CAYLAR offers several accessories:
  • Preamplifiers, from one to 4 channels, they are necessary to use NMR probes and NMR20 teslameter.
  • Switch, to connect several preamplifiers and up to 256 NMR probes to a single CAYLAR NMR gaussmeter.
  • Carrying cases, to transport your equipment.
  • Gradient coils to improve the NMR signal







Preamplifiers & Multiplexers

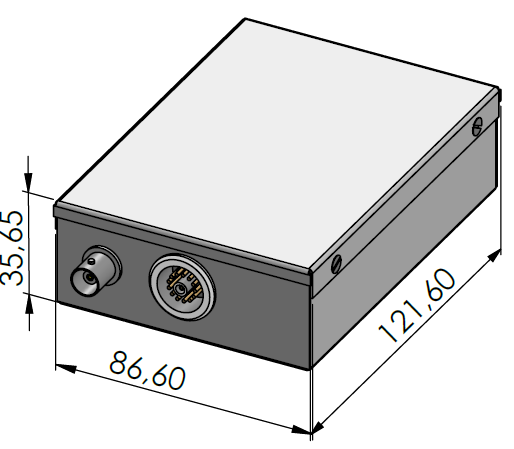

PAMUX1

1 channel preamplifier with low field or high field filter (from 40mT probes).
PAMUX1 - 3d File

rar . 87.58 Ko

PAMUX1 - Drawing

pdf . 140.31 Ko

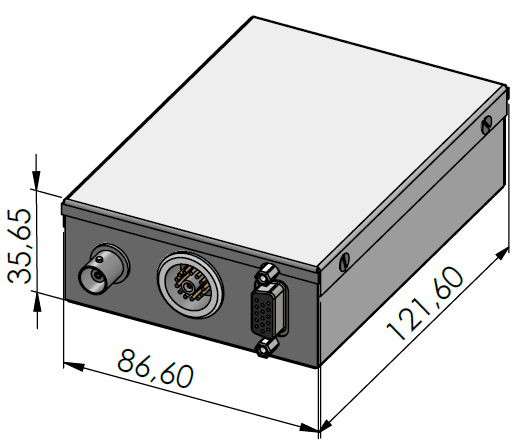

PAMUX2

2 channel preamplifier with filters compatible with all NMR probes from 14mT to 13T.

PAMUX2 - 3d File

rar . 145.93 Ko

PAMUX2 - Drawing

pdf . 166.81 Ko

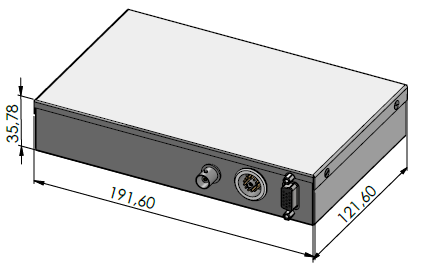

PAMUX4

4 channel preamplifier with filters compatible with all NMR probes from 14mT to 13T.

PAMUX4 - 3d File

rar . 159.06 Ko

PAMUX4 - Drawing

pdf . 280.83 Ko

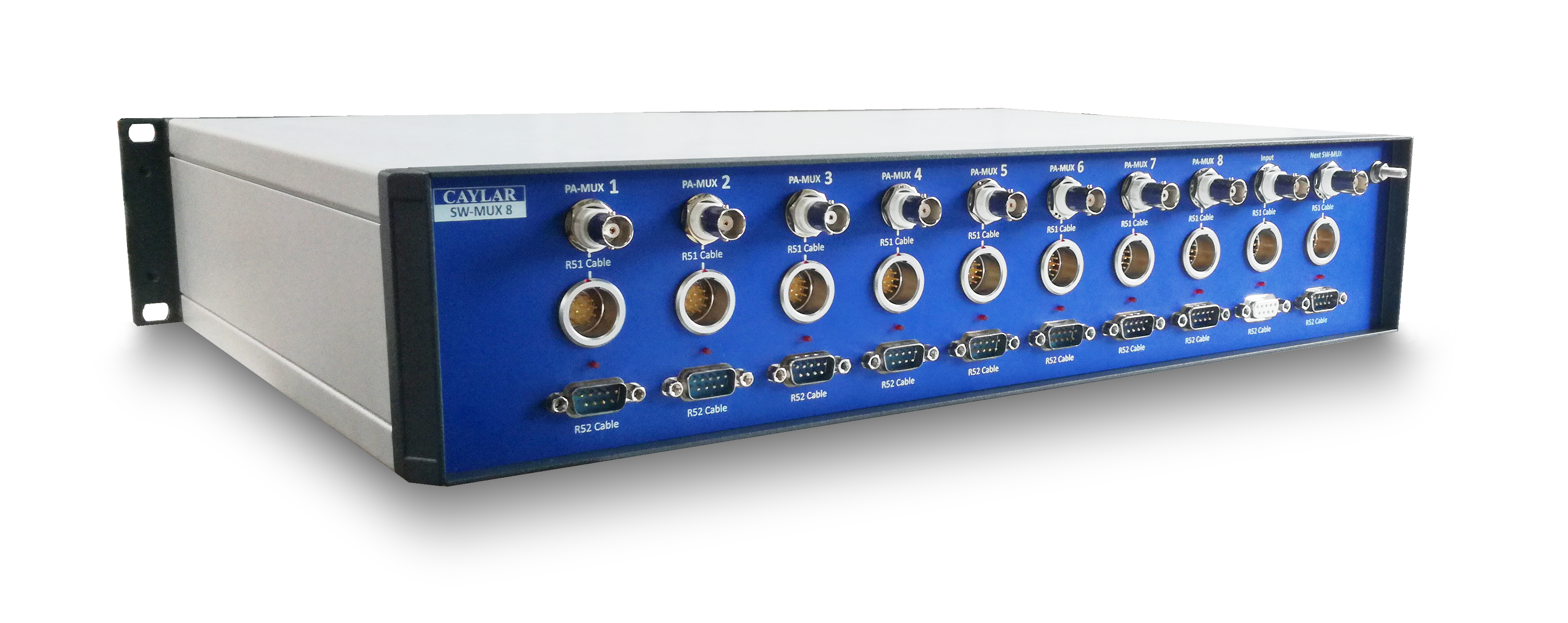

SW4 & SW8 Multiplexers

4-channel and 8-channel multiplexer without preamplification to connect up to 256 NMR probes to a single NMR20 Teslameter.




Transport cases

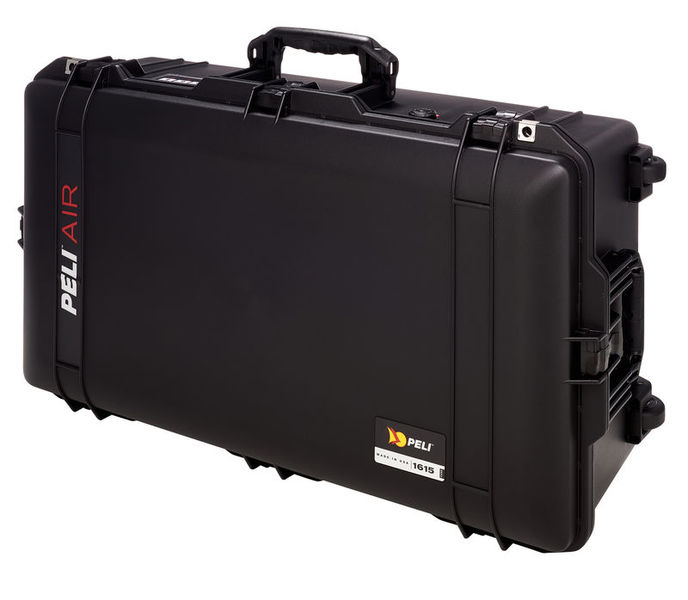

Peli Air 1615

  • Dimensions: 752x394x238mm
  • Weight: 6,4Kg (Empty)
  • Telescopic wheel and handle
  • Waterproof (IP67), shockproof and dustproof
  • Automatic pressurization valve

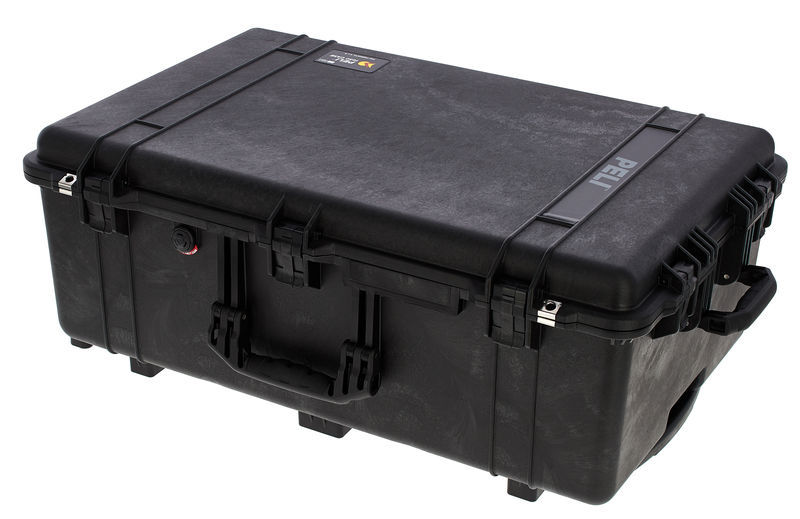

Peli 1650

  • Dimensions: 828x467x280mm
  • Weight: 12,73Kg (Empty)
  • Telescopic wheel and handle
  • Waterproof (IP67), shockproof and dustproof
  • Automatic pressurization valve




Tarifs

Please find below the indicative price list to help you estimate the cost of your system. The actual price depends on a number of other factors.


NMR Gaussmeter


NMR20 Gaussmeter

NMR Teslameter - NMR Magnetometer

NMR20

15 600,00€

Option Regulation FR020

NMR Field Regulator

FR020

4 900,00€



NMR Probes


NMR Probe 14mT - 70mT A

Case A 21 x 10 x 160 mm

NMR20-PRBA14-40mT

6 100,00€

NMR Probe 20mT - 100mT A

Case A 21 x 10 x 160 mm

NMR20-PRBA20-100mT

4 200,00€

NMR Probe 30mT - 150mT A

Case A 21 x 10 x 160 mm

NMR20-PRBA30-150mT

3 200,00€

NMR Probe 40mT - 200mT A

Case A 21 x 10 x 160 mm

NMR20-PRBA40-200mT

2 600,00€

NMR Probe 40mT - 200mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB40-200mT

3 000,00€

NMR Probe 50mT - 250mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB50-250mT

3 000,00€

NMR Probe 60mT - 300mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB60-300mT

2 600,00€

NMR Probe 80mT - 400mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB80-400mT

2 600,00€

NMR Probe 90mT - 450mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB90-450mT

2 600,00€

NMR Probe 100mT - 500mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB100-500mT

2 600,00€

NMR Probe 140mT - 700mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB140-700mT

2 600,00€

NMR Probe 160mT - 800mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB160-800mT

2 600,00€

NMR Probe 170mT - 900mT B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB170-900mT

2 600,00€

NMR Probe 240mT - 1,2T B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB240-1.2T

2 600,00€

NMR Probe 300mT - 1,5T B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB300-1.5T

2 600,00€

NMR Probe 450mT - 2,1T B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB450-2.1T

2 600,00€

NMR Probe 650mT - 3T B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB650-3T

2 600,00€

NMR Probe 2T - 5T B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB2-5T

2 600,00€

NMR Probe 4T - 9T B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB4-9T

2 600,00€

NMR Probe 6T - 13T B

Case B 16 x 6,4 x 160 mm

NMR20-PRBB6-13T

2 600,00€

NMR Probe Case C Option

Case C 8 x 6 x 160 mm - From 50mT

NMR20-PRB-C

400,00€

Double NMR Probe Option

Case D 20 x 6 x 160 mm - From 50mT

NMR20-PRB-D

1 700,00€

NMR Probe Case T Option

Case T 20 x 2 x 160 mm - From 16mT

NMR20-PRB-T

4 200,00€

Custom NMR Probe Option

Specific housing and measuring range

NMR20-PRX-X

10m extension cable for NMR Probe

NMR20-PR-EXTCABLE

500,00€



Preamplifiers


PAMUX1

1 Channel Preamplifier

NMR20-PAMUX1

1 400,00€

PAMUX2

2 Channels Preamplifier Multiplexer

NMR20-PAMUX2

2 300,00€

PAMUX4

4 Channels Preamplifier Multiplexer

NMR20-PAMUX4

3 900,00€



Multiplexers


SWMUX4

Multiplexers 4 Channels

NMR20-SW4

2 400,00€

SWMUX8

Multiplexers 8 Channels

NMR20-SW8

4 400,00€



Cables


R51 Cable - 5 meters

Required to connect the Gaussmeter to preamplifiers

NMR20-R51-5

460,00€

R52 Cable - 5 meters

Required to control a multiplexer

NMR20-R52-5

100,00€

Coaxial Cable - 5 meters

Required to connect the Gaussmeter to preamplifiers

NMR20-RCX-5

50,00€

R51 Cable - 10 meters

Required to connect the Gaussmeter to preamplifiers

NMR20-R51-10

460,00€

R52 Cable - 10 meters

Required to control a multiplexer

NMR20-R52-10

100,00€

Coaxial Cable - 10 meters

Required to connect the Gaussmeter to preamplifiers

NMR20-RCX-10

50,00€

R51 Cable - Additional meters

R51 cable additionnal meter

NMR20-R51-1M

15,00€

R52 Cable - Additional meters

R52 cable additionnal meter up to 50m

NMR20-R52-1M

5,00€

Coaxial Cable - Additional meter

Coaxial cable additionnal meter

NMR20-RCX-1M+

6,50€

Coaxial Cable - Additional meter (>50m)

Additionnal meter from 50m up to 300m

NMR20-RCX-1M+50

15,00€



Accessories


Gradient compensation coil for NMR Probe

40 G/cm

NMR20-GRDTZ

300,00€

Transport Case for 1NMR System

Waterproof shockproof copolymer case PELICASE

NMR20-PELICASEAIR-1615

800,00€

Transport Case for 2 NMR Systems

Waterproof shockproof copolymer case PELICASE

NMR20-PELICASE-1650

900,00€



Calibrations and Verifications


NMR20 Calibration and checks

NMR20-NMR20-CALIB

880,00€

Switch checks

NMR20-SW-CALIB

230,00€

Preamplifier check

NMR20-PAMUX-CALIB

230,00€

NMR Probe check

NMR20-PRB-CALIB

270,00€
