DTM-133 - Hall Teslameter
Introduction to the Gaussmeter
- High accuracy - fully temperature compensated
- Resolution of 1 part in 600,000
- 4 ranges
- Maximum field : 3 Tesla
- 7 digit display
- RS232 or IEEE488/GPIB communications
- Accuracy is 0,03 % of reading + 0,03 % of full scale when used with MPT-230 probe
- Temperature range for instrument and probe 0 to 50°C
Best use in conjunction with an MPT-132 or LPT-130 for standard sensibility or an MPT-230 or LPT-230 Hall Effect Probes for high sensitivity, low-field operation.
Options
- RS232 or IEEE488/GPIB
- Bench or Panel Mount
- Cable lenght up to 30 meters long
Standart probes

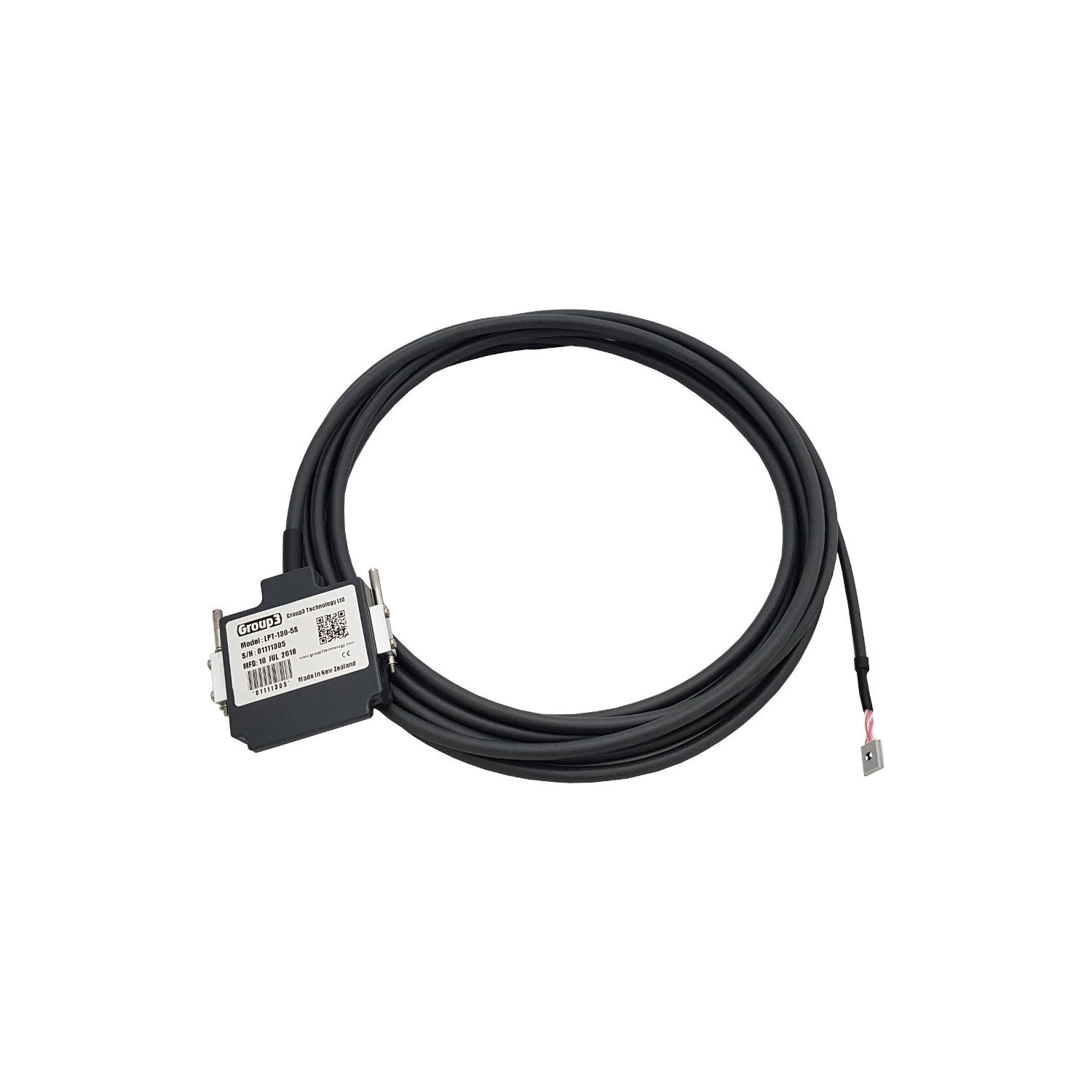

LPT-130 - Large Probe
Max Field reading : 3T
Max resolution : 50µT
Absolute Accuracy: -(80ppm + 3ppm/meter)/C°
Zero Drift (full scale) : ±12µT/C°

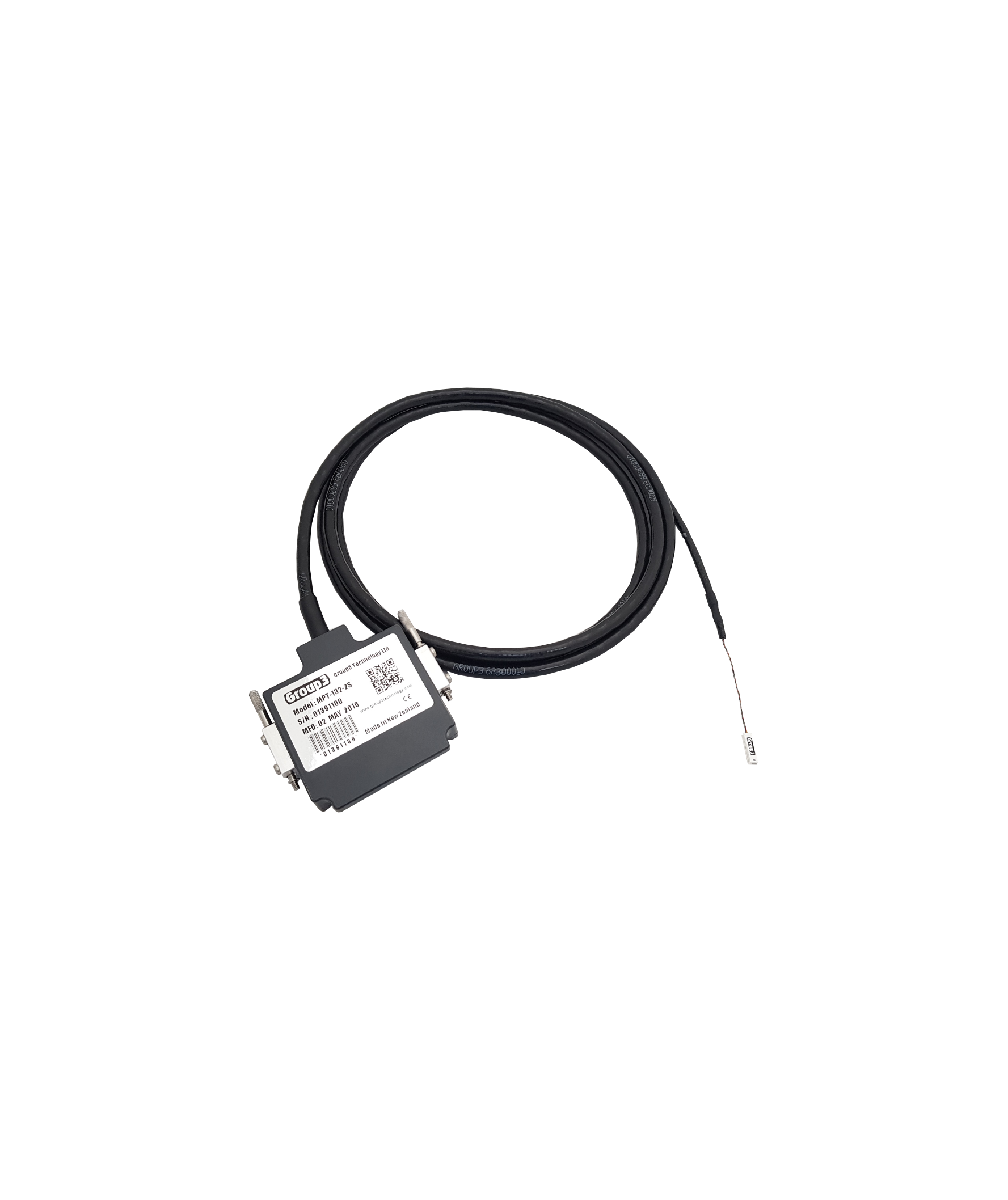

MPT-132 - Miniature Probe
Max Field reading : 3T
Max resolution : 50µT
Absolute Accuracy: -(140ppm + 3ppm/meter)/C°
Zero Drift (full scale) : ±15µT/C° typ., ±40µT/C° max
Standart probes

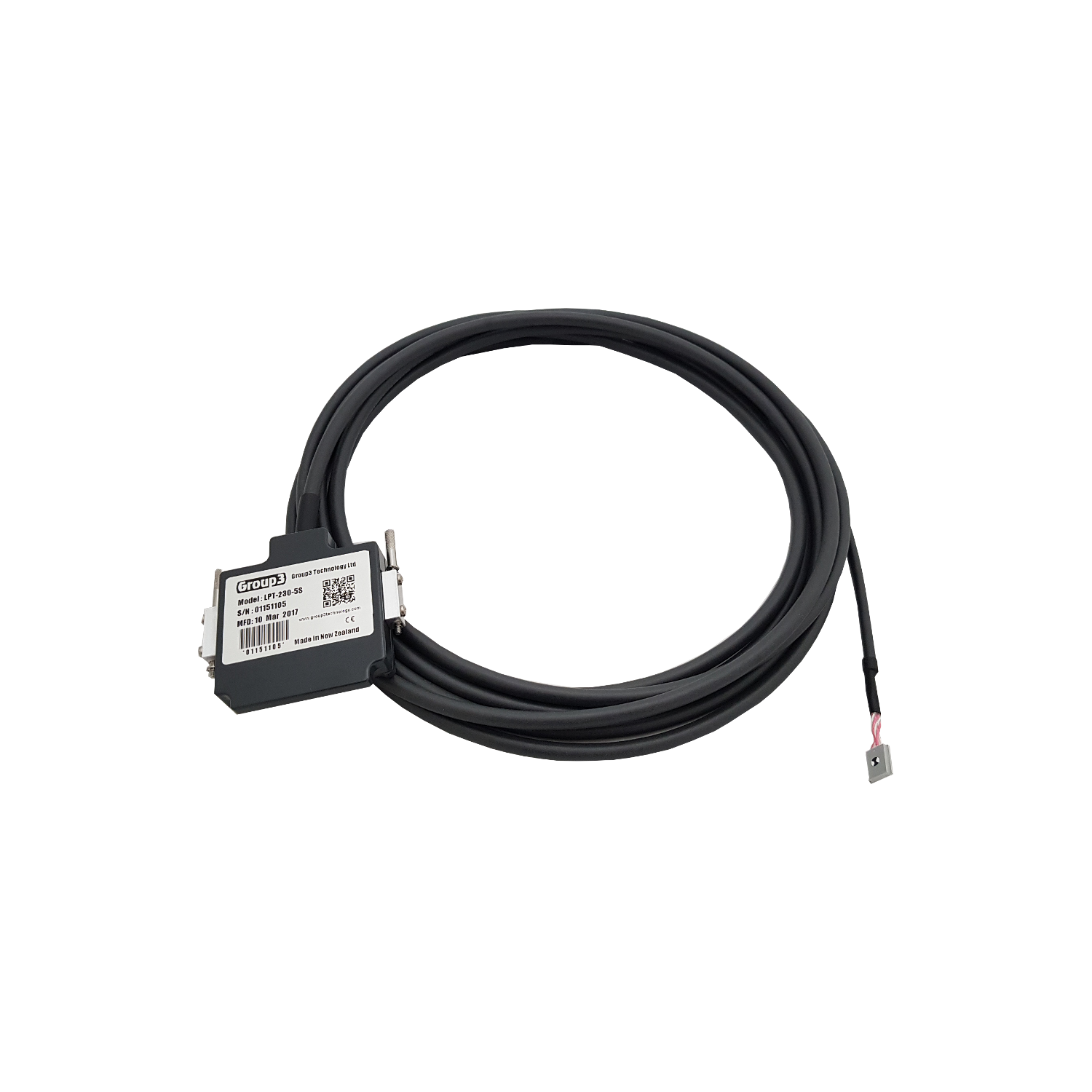

LPT-230 - Large Probe
Max Field reading : 0.3T
Max resolution : 5µT
Absolute Accuracy: -(620ppm + 3ppm/meter)/C°
Zero Drift (full scale) : ±12µT/C°
MPT-230 - Miniature Probe
Max Field reading : 0.3T
Max resolution : 5µT
Absolute Accuracy: -(820ppm + 3ppm/meter)/C°
Zero Drift (full scale) : ±12µT/C°

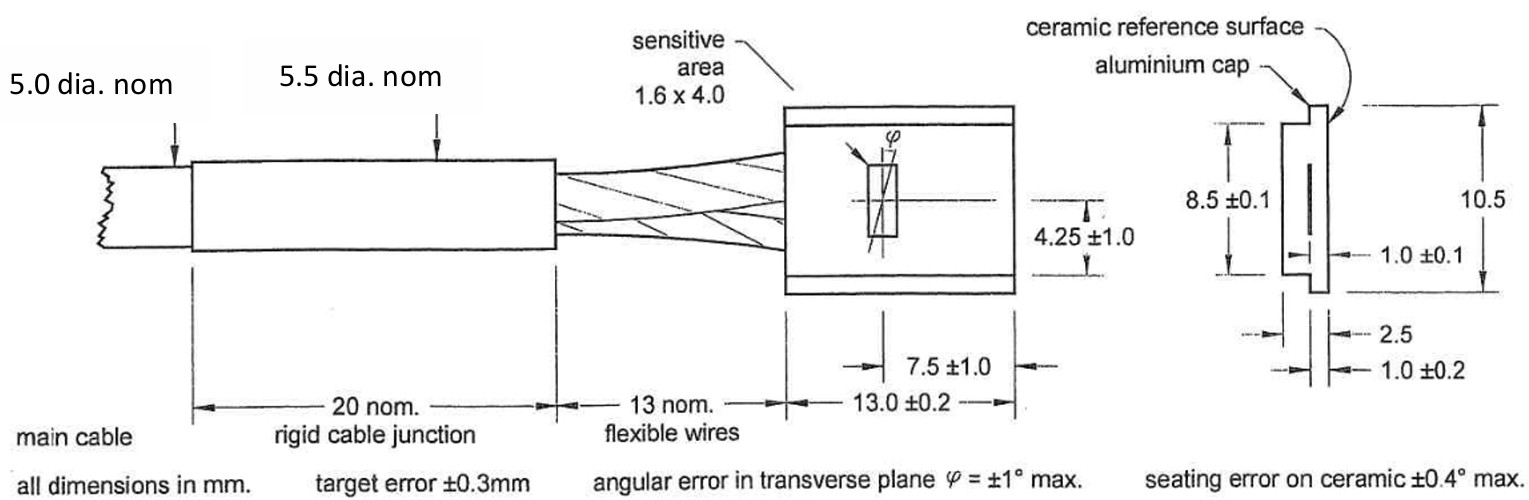

LPT Probes
MPT Probe
Downloads
Documents
Group3 DTM-133 - Digital Hall Teslameter Datasheet
pdf . 371.66 Ko
Group3 LPT-130 - Hall Probe Datasheet
pdf . 285.29 Ko
Group3 LPT-230 - Hall Probe Datasheet
pdf . 155.19 Ko
Group3 MPT-132 - Hall Probe Datasheet
pdf . 126.74 Ko
Group3 MPT-230 - Hall Probe Datasheet
pdf . 149.26 Ko
