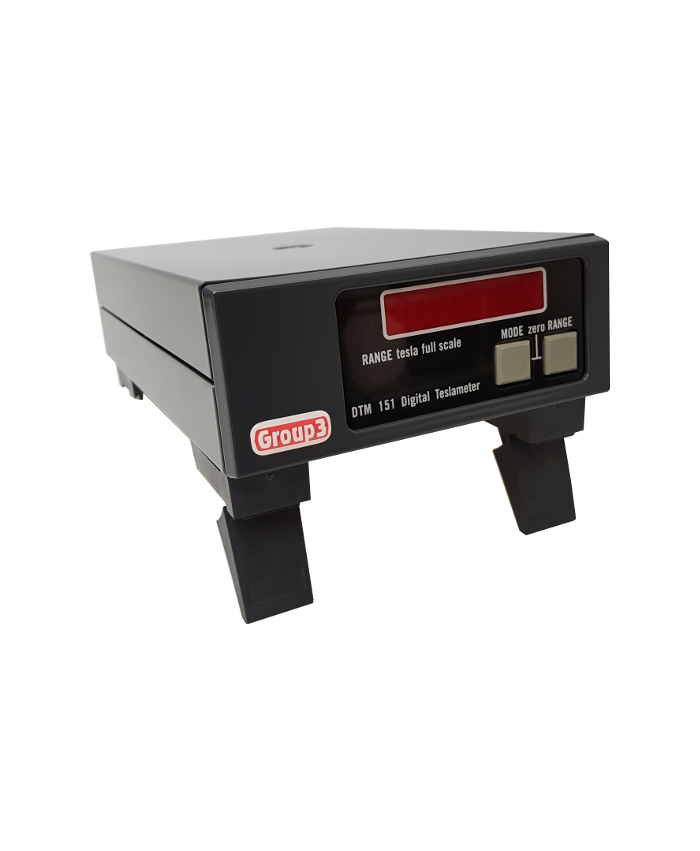

DTM-151 - High Precision Hall Teslameter
Introduction to the Gaussmeter
- High accuracy - fully temperature compensated
- Resolution of 1 part in 600,000
- 4 ranges
- Maximum field : 3 Tesla
- 7 digit display
- RS232 or IEEE488/GPIB communications
- Accuracy is 0,01 % of reading + 0,006 % of full scale when used with MPT-141 probe
- Temperature range for instrument and probe 0 to 50°C
Best use in conjunction with an MPT-141 or LPT-141 for standard sensibility or an MPT-231 or LPT-231 Hall Effect Probes for high sensitivity, low-field operation.
Options
- RS232 or IEEE488/GPIB
- Bench or Panel Mount
- Cable lenght up to 30 meters long
Standart probes

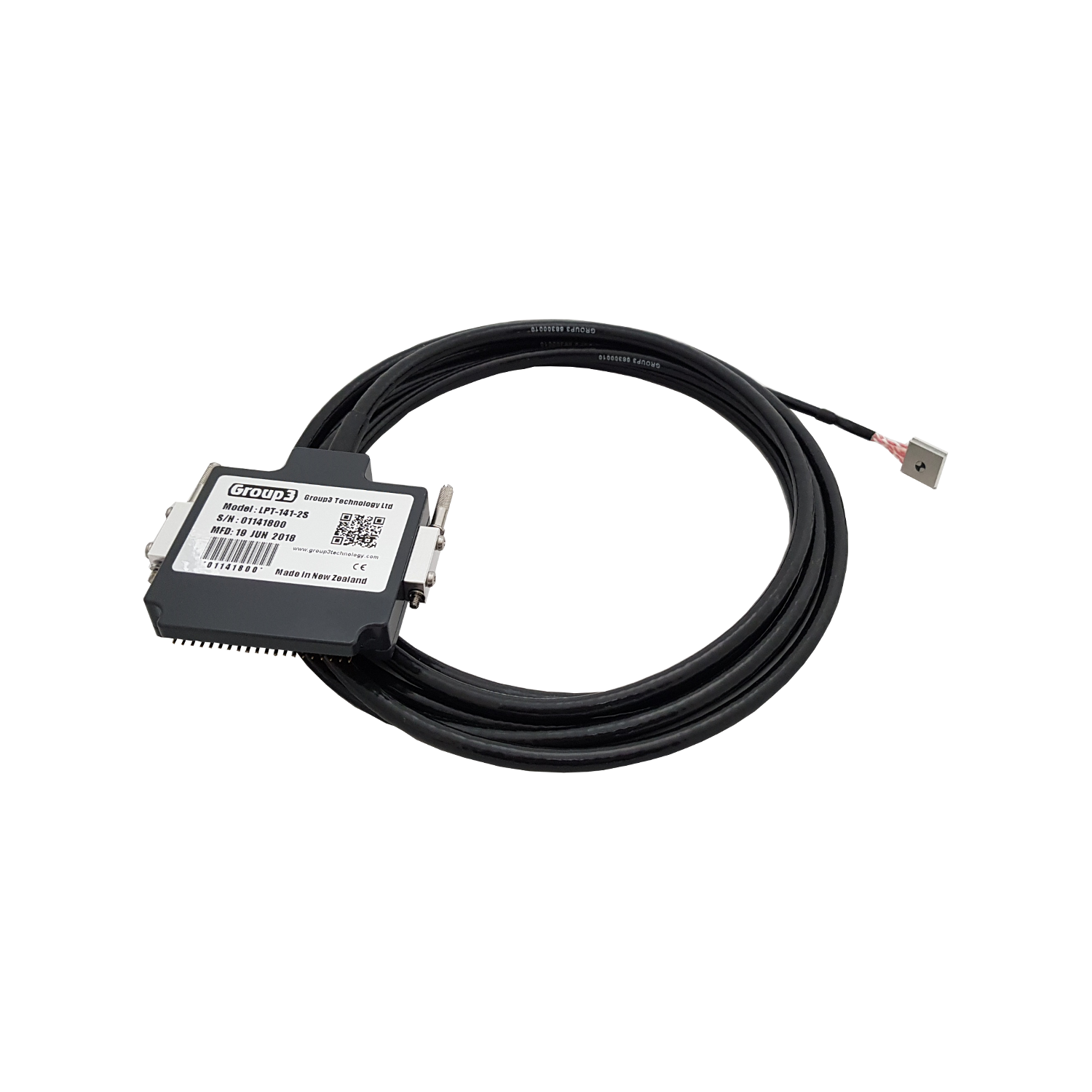

LPT-141 - Large Probe
Max Field reading : 3T
Max resolution : 1µT
Absolute Accuracy: -(10ppm + 3ppm/meter)/C°
Zero Drift (full scale) : ±1µT/C°

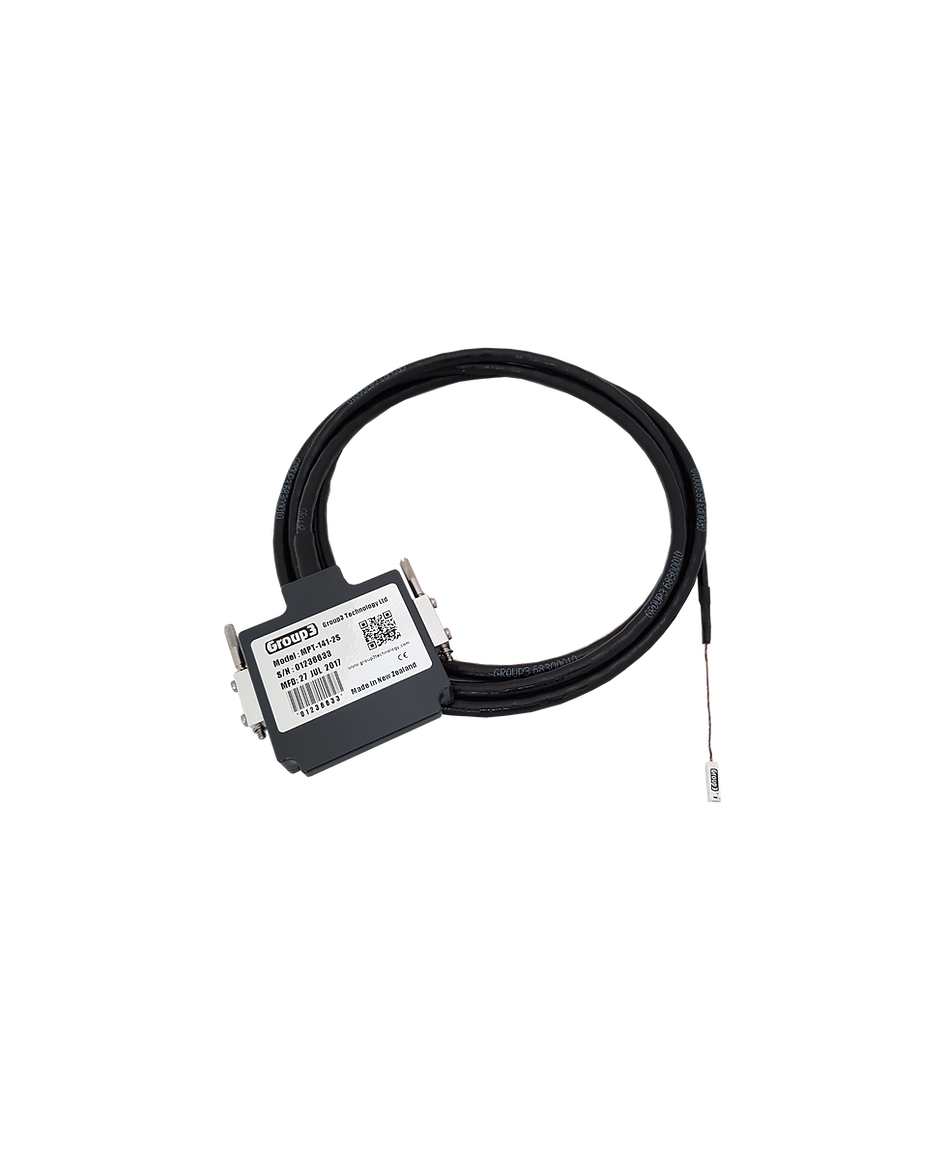

MPT-141 - Miniature Probe
Max Field reading : 3T
Max resolution : 1µT
Absolute Accuracy: -(10ppm + 3ppm/meter)/C°
Zero Drift (full scale) : ±1µT/C°
Standart probes
LPT-231 - Large Probe
Max Field reading : 0.3T
Max resolution : 0.1µT
Absolute Accuracy: -(25ppm + 3ppm/meter)/C°
Zero Drift (full scale) : ±1µT/C°

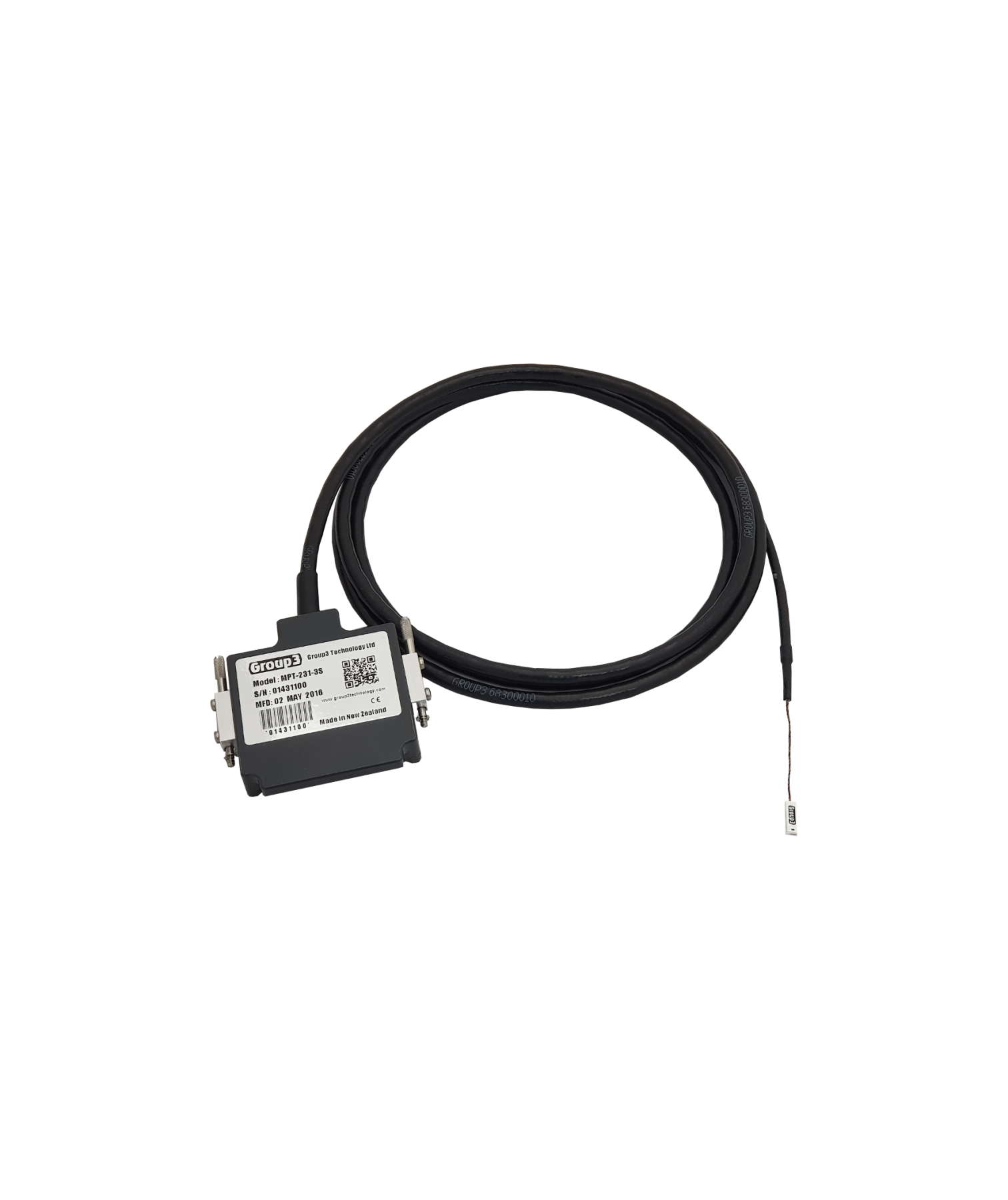

MPT-231 - Miniature Probe
Max Field reading : 0.3T
Max resolution : 0.1µT
Absolute Accuracy: -(25ppm + 3ppm/meter)/C°
Zero Drift (full scale) : ±1µT/C°

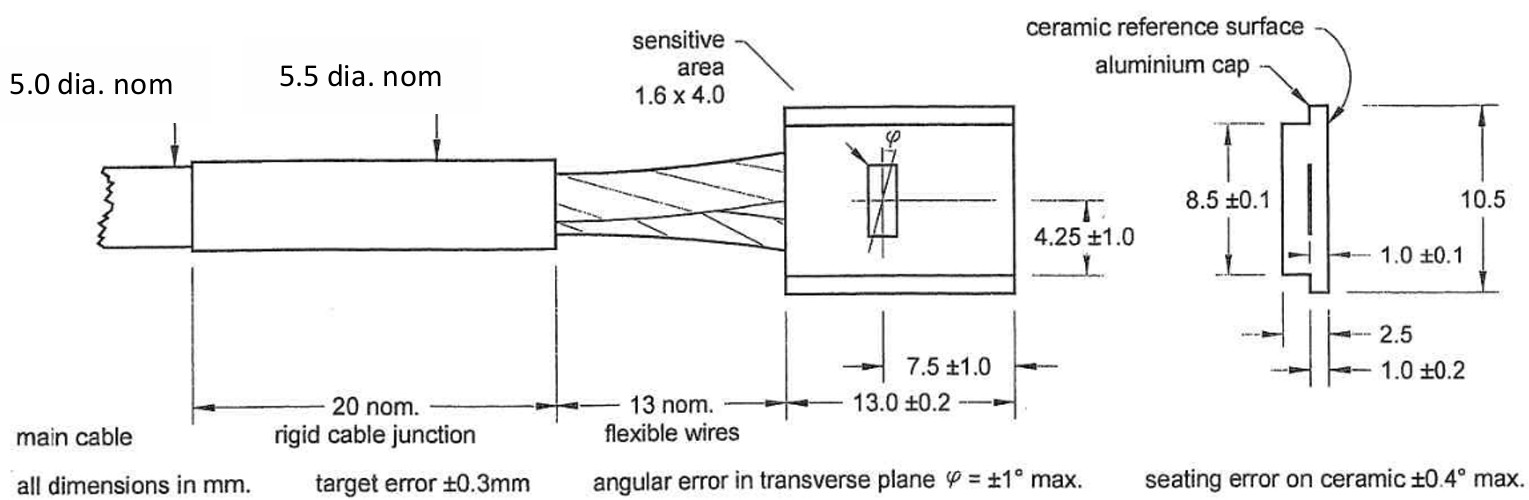

LPT Probes
MPT Probe
