EA132C

1.17 T @ 50 MM - 3.84 T @ 5 MM - 158 Kg


Compact and lightweight laboratory electromagnet with interchangeable poles.

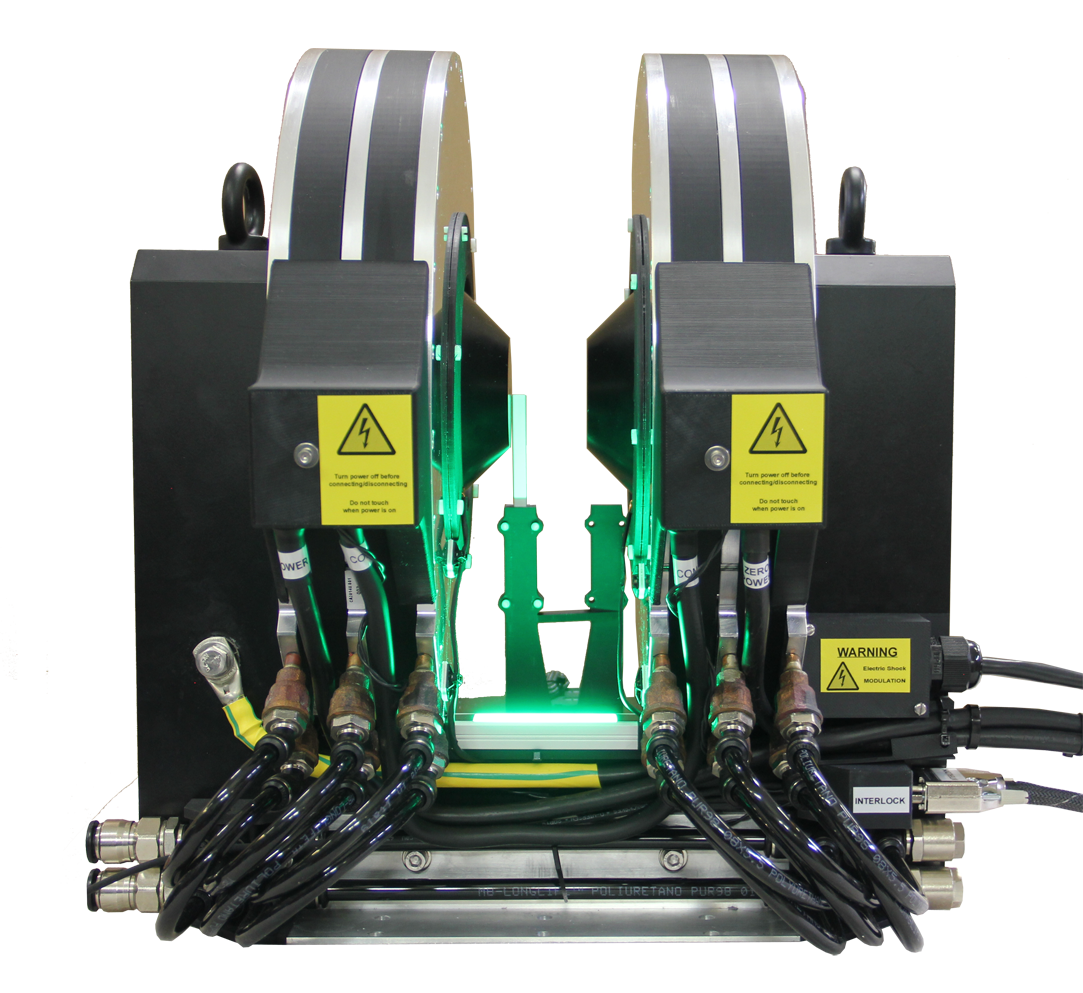

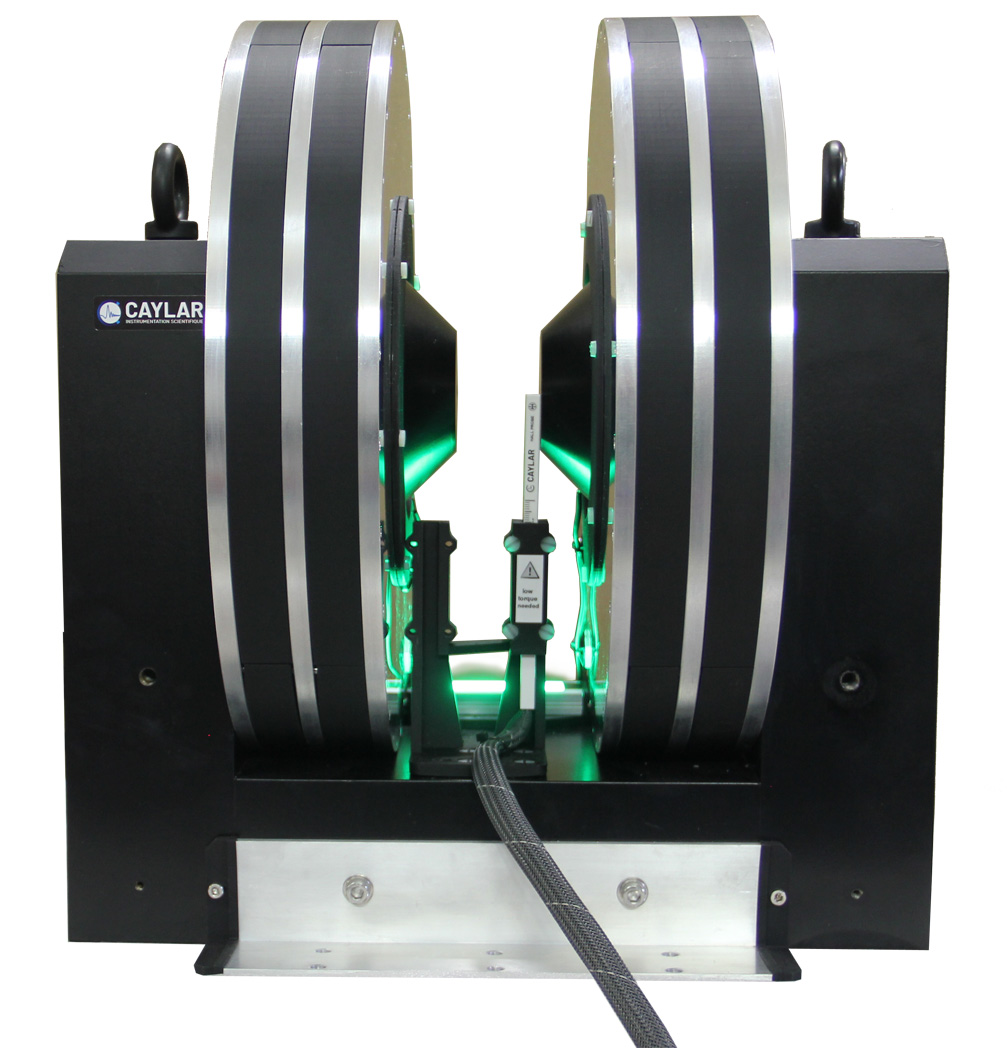

CAYLAR - EA132 Electromagnet
CAYLAR - EA132 Electromagnet
CAYLAR - EA132 Electromagnet
CAYLAR - EA132 Electromagnet
CAYLAR - EA132 Electromagnet




Specifications

Weight158 Kg
Max Field3.84 T @ Entrefer 5mm
Distance between coils>93 mm
Water Flow10 L/min
Resistance @ 20°C0.5 Ohm
Inductance174 mH




Options

  • Custom pole set (cylindrical, conical, drilled, etc.)
  • 90° support
  • Manual or motorized rotation base
  • Custom made coil
  • Customized pole set
  • AC modulation coils
  • H-frame version


Power Supplies

Power supplies for the standard coil set (0.166 Ohm) :
  • Power supply 140A 85V
  • Power supply 120A 70V
  • Power supply 100A 60V
  • Power supply 60A 35V
    Options : 10ppm / 5ppm / 1ppm / Integrated HALL Gaussmeter / True Bipolar 4 quadrants

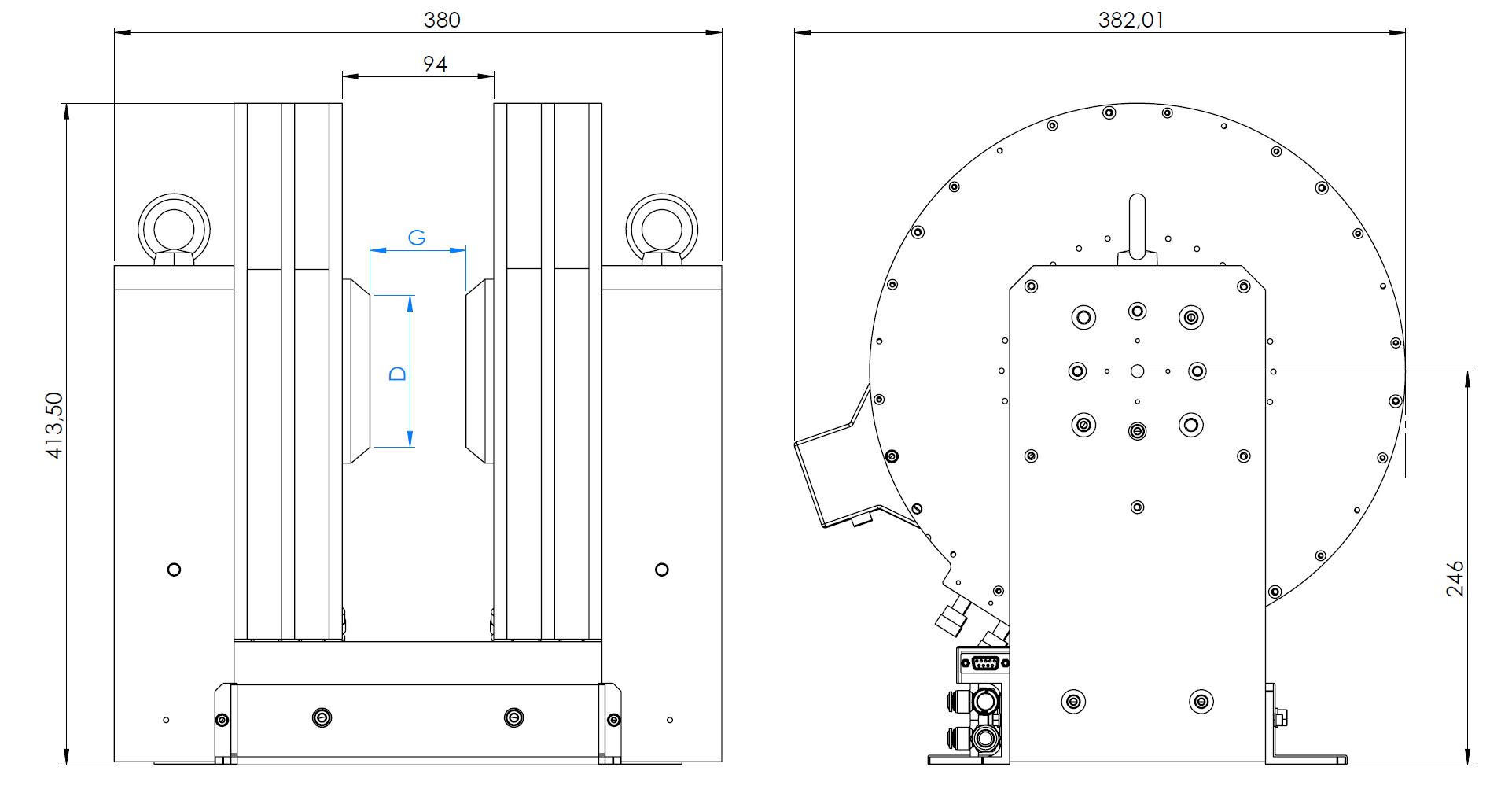

Dimensions

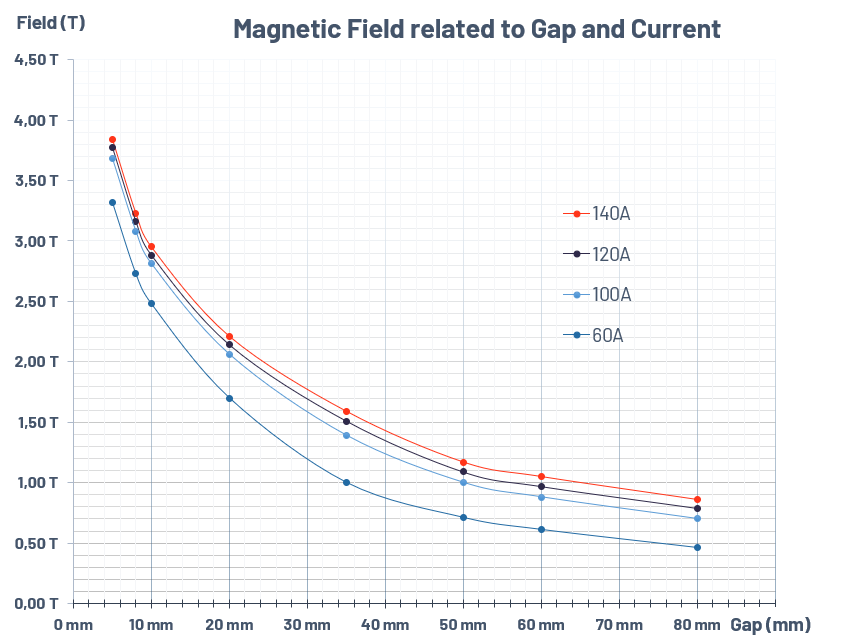

Field and Pole Homogeneity

Gap GB maxFace DHomogeneity/Volume
5 mm3.84 T10 mm3.09%/3x3x3 mm
8 mm3.23 T15 mm2.35%/5x5x5 mm
10 mm2.95 T20 mm2.56%/8x8x8 mm
20 mm2.21 T40 mm1.33%/10x10x10 mm
35 mm1.59 T70 mm1.15%/15x15x15 mm
50 mm1.17 T95 mm0.53%/15x15x15 mm
60 mm1.05 T95 mm0.78%/15x15x15 mm
80 mm0.86 T95 mm0.98%/15x15x15 mm




Prices

Please find below the indicative price list to help you estimate the cost of your system. The actual price depends on a number of other factors.


Electromagnets


EA132C

EA132C electro-magnet

EA132C

20 300,00€



Set of Poles


Pole 5

3,84 Tesla in 5mm Gap

EA132-P5

1 000,00€

Pole 8

3,23 Tesla in 8mm Gap

EA132-P8

1 000,00€

Pole 10

2,95 Tesla in 10mm Gap

EA132-P10

1 000,00€

Pole 20

2,21 Tesla in 20mm Gap

EA132-P20

1 000,00€

Pole 35

1,59 Tesla in 35mm Gap

EA132-P35

1 000,00€

Pole 50

1,17 Tesla in 50mm Gap

EA132-P50

1 000,00€

Pole 60

1,05 Tesla in 60mm Gap

EA132-P60

1 000,00€

Pole 80

0,86 Tesla in 80mm Gap

EA132-P80

1 000,00€

Custom Poles

Custom poles with simulations

EA132-PXX

1 200,00€



Magnet Power Supply


35V 60A Power supply

Monopolar Power Supply 100ppm

MPU-35V60A-2Q

7 500,00€

35V 60A Bipolar power supply

4 Quadrants True Bipolar Power Supply 100ppm

MPU-35V60A-4Q

10 000,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-35V60A-10PPM

2 000,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-35V60A-5PPM

3 500,00€

True 1ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-35V60A-1PPM

5 500,00€

60V 100A Power supply

Monopolar Power Supply 100ppm

MPU-60V100A-2Q

15 000,00€

60V 100A Bipolar power supply

4 Quadrants True Bipolar Power Supply 100ppm

MPU-60V100A-4Q

22 000,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-60V100A-10PPM

2 500,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-60V100A-5PPM

5 000,00€

True 1ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-60V100A-1PPM

7 500,00€

75V 120A Power supply

Monopolar Power Supply 100ppm

MPU-75V120A-2Q

21 500,00€

75V 120A Bipolar power supply

4 Quadrants True Bipolar Power Supply 100ppm

MPU-75V120A-4Q

31 000,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-75V120A-10PPM

3 100,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-75V120A-5PPM

6 200,00€

True 1ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-75V120A-1PPM

9 000,00€

85V 140A Power supply

Monopolar Power Supply 100ppm

MPU-85V140A-2Q

29 500,00€

85V 140A Bipolar power supply

4 Quadrants True Bipolar Power Supply 100ppm

MPU-85V140A-4Q

43 660,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-85V140A-10PPM

3 500,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-85V140A-5PPM

5 800,00€

True 1ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-85V140A-1PPM

8 700,00€

HALL Option

Integreted HALL Gaussmeter + HALL Probe

MPU-HALL

3 000,00€

HALL Thermalized Option

Integreted HALL Gaussmeter + Thermalized HALL Probe

MPU-HALL-TH

5 000,00€

Hall Regulation Option

Integreted HALL Regulation

MPU-HALL-REGUL

2 000,00€



Accessories


Water Chiller

System 10kW

CHILLER-10KW

2 000,00€

45° Support

45° Mounting bracket

EA132-SUP45

600,00€

Manual rotating Base

EA132-ROT

1 500,00€

Motorized rotating base

with electronic controller

EA132-ROTM

6 500,00€

Vertical motorized rotating base

with electronic controller

EA132-ROTM-VERT

10 000,00€

Modulation coils

Set of two modulation coils

EA132-ACMOD-COILS

1 800,00€

H Circuit - EA132H

Close the circuit to increase the field and homogeneity

EA132H

2 500,00€


Product added to the quote.


Specific request

Our means of simulation and our know-how allow us to manufacture a custom-made electromagnet according to 5 criteria:

  • Air gap
  • Maximum field
  • Homogeneity
  • Speed of field variation
  • Mechanical constraints (Optical access, UHV, size, mass, etc)

CAYLAR designs and manufactures magnetizing coils, vacuum chambers and current sources which offers a great flexibility for the design of an electromagnet. It is possible to adapt the coils to an existing power supply.

* Fields marked with an asterisk are required.









Specify an air or volume





Data from our simulation tool. Our simulator has been calibrated to obtain values of magnetic field and homogeneity lower than the reality with an error rate between 0 and 5%.
