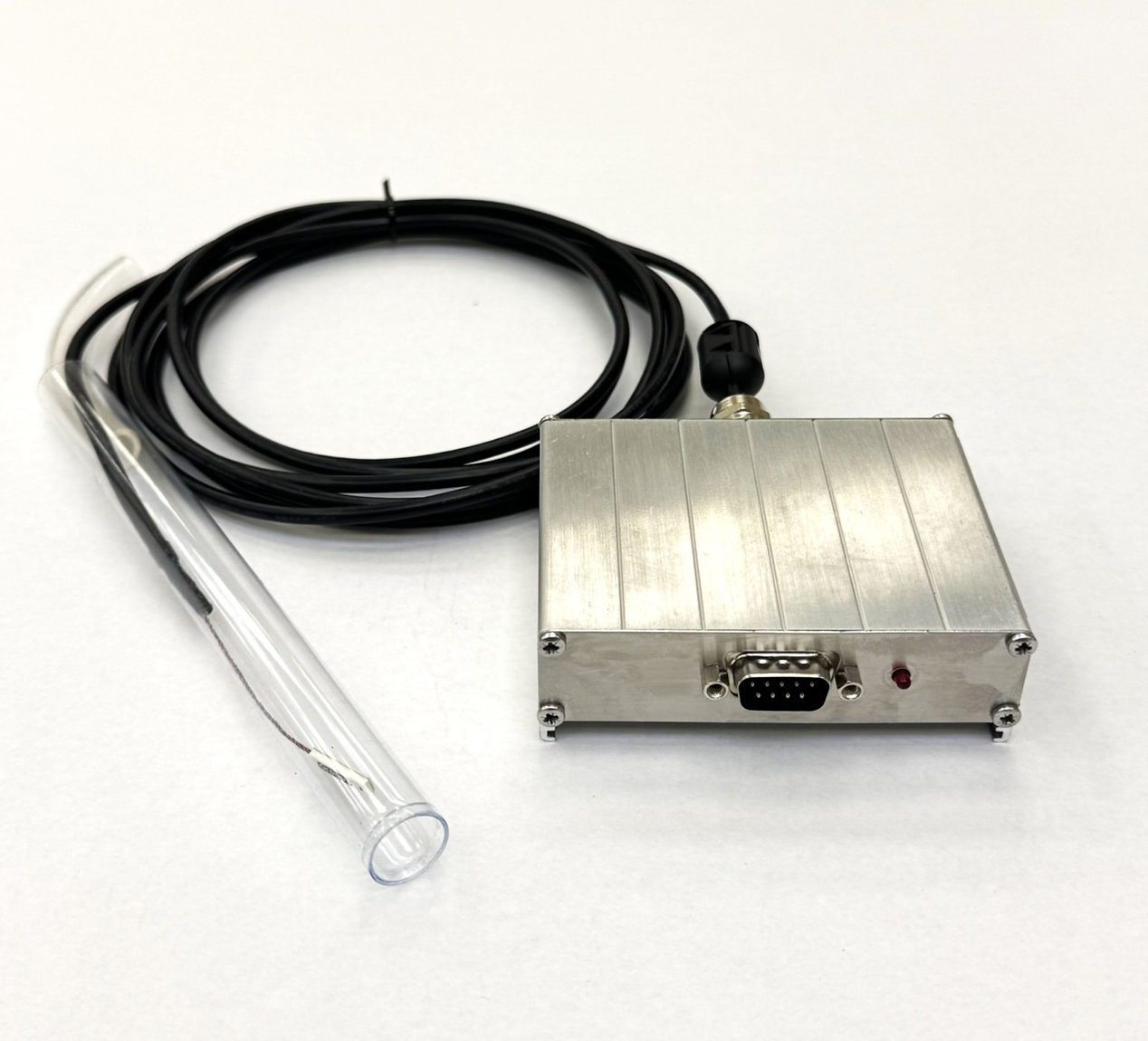

HPC - Analogic Hall Teslameter
Introduction to the Gaussmeter
- Fully temperature compensated
- Full scale magnetic field measurement : from 0.1 to 2.2T (on request)
- Input Power : ±15V nominal DC, ±14.5V min, ±18V max
- Full scale Output Power : From 5 to 10V (on request)
- Accuracy is 0,01 % of reading + 0,062% of full scale up to 10kHz ±1 above 10kHz
- Bandwidth : 0 to >200kHz (-3dB point) , 0 to 35kHz sine wave (20volt peak-to-peak output)
- RS232 or IEEE488/GPIB
- Bench or Panel Mount
- Cable lenght up to 30 meters long
