NMR25-4 - High Precision NMR Teslameter
Documents
NMR25-4 - NMR Teslameter
pdf . 2346.33 Ko
Software Integration
SDK and library available on request, compatible with most environments. Python & LabView.
Local API (documentation included) to control the NMR20, read measurements, stream the NMR signal, and configure the instrument.
Ready-to-use code examples and documentation: demonstration scripts and integration templates.
Direct technical support from our application engineers for onboarding and troubleshooting.
Introduction to the Gaussmeter

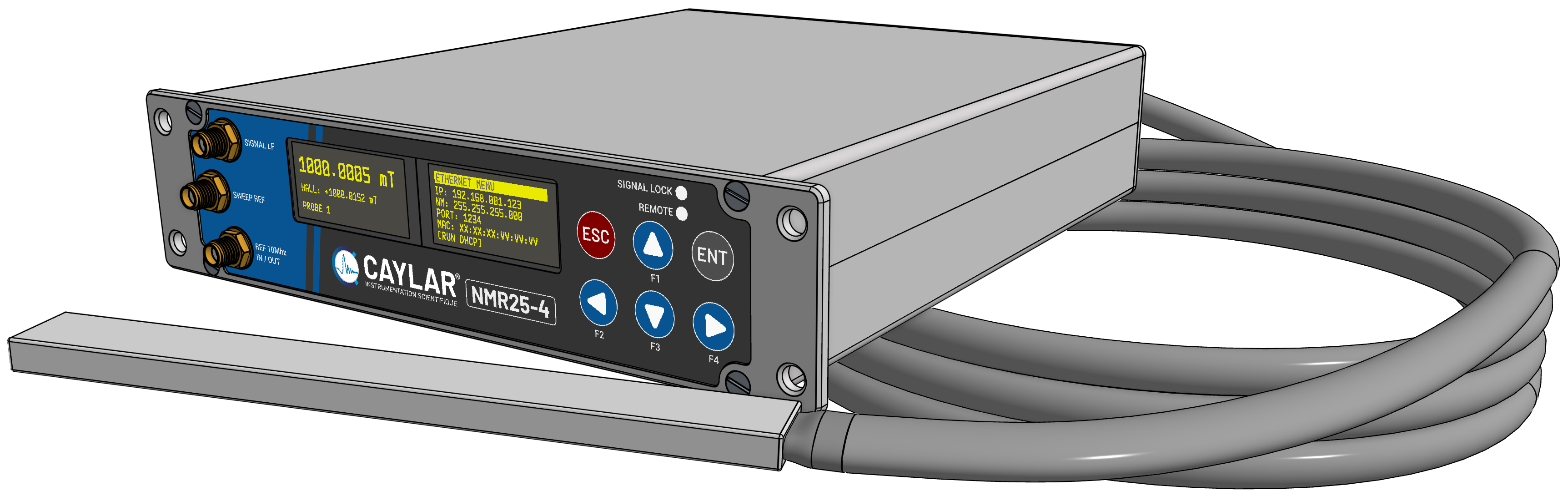

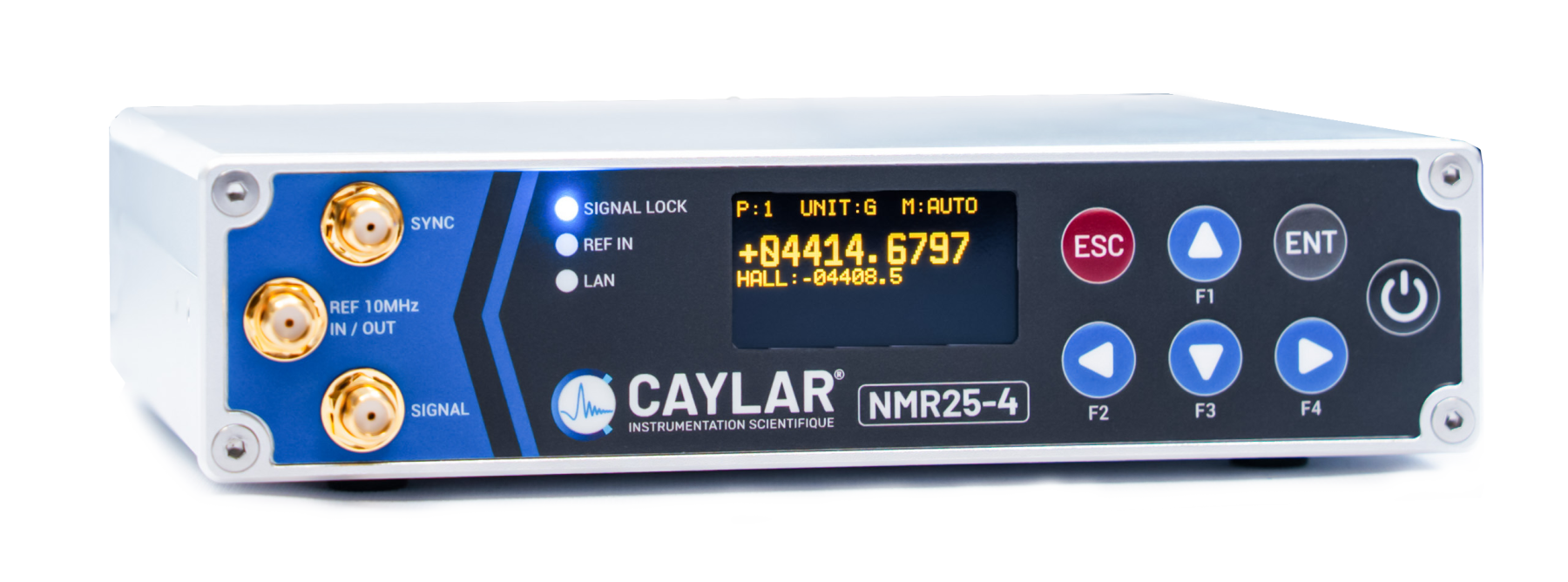

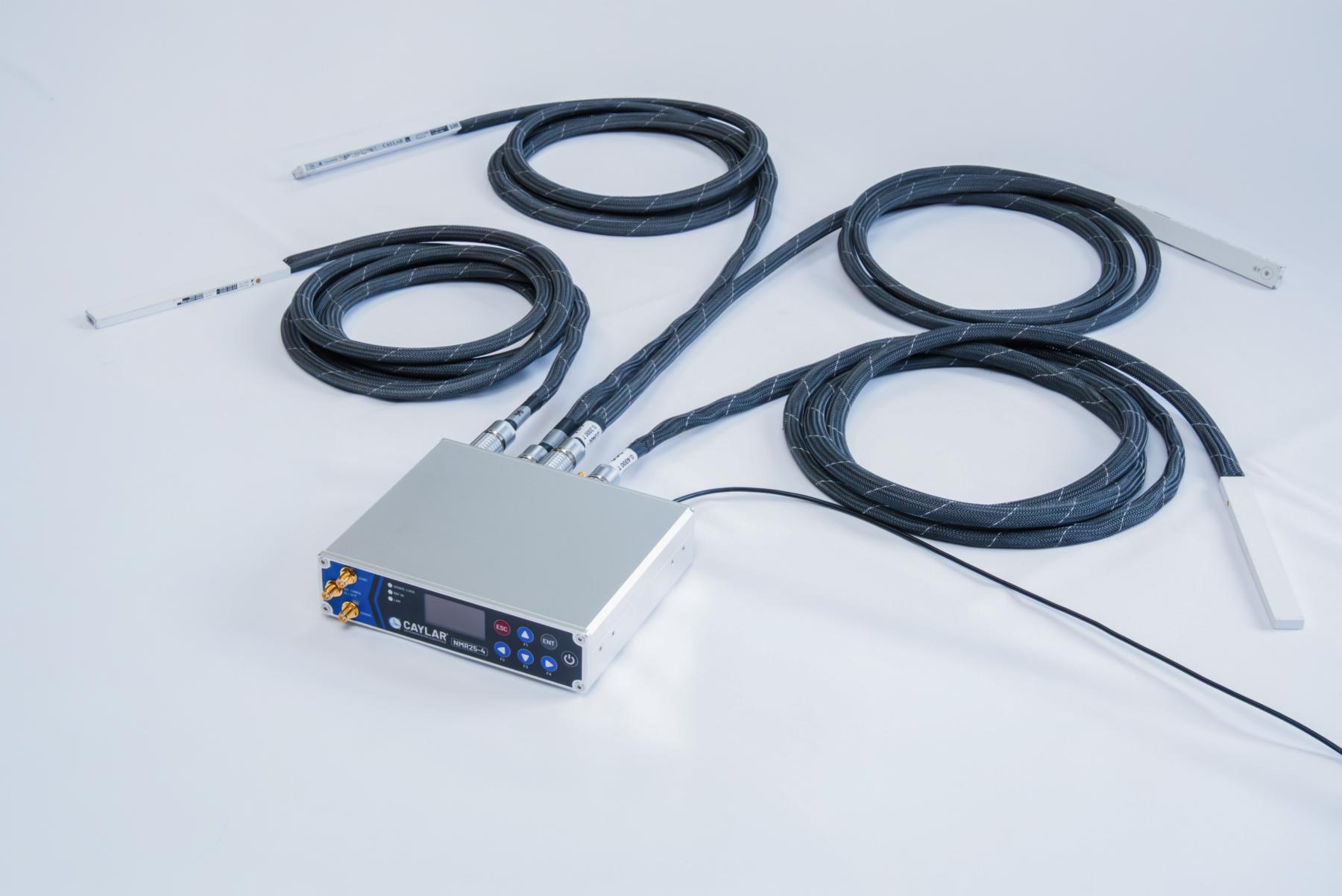

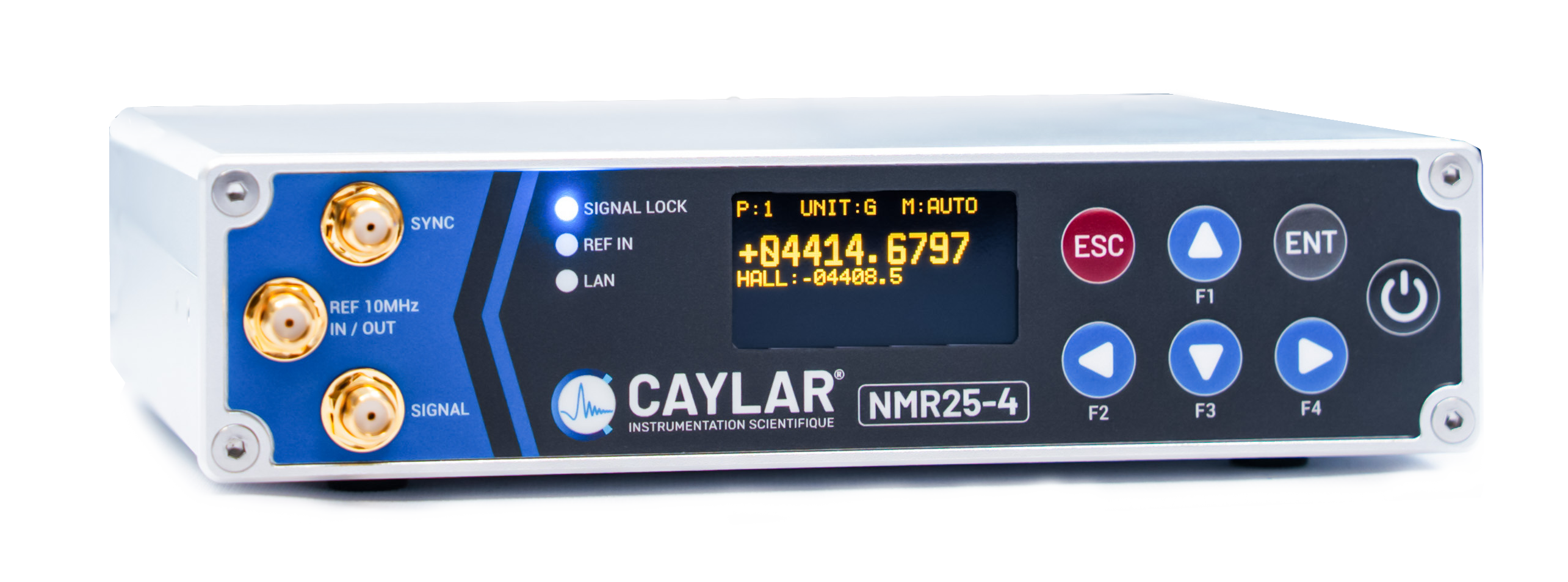

The NMR25-4 is a fully automatic 4-channel NMR teslameter designed for particle accelerators and high-performance magnetic field monitoring applications.
- 100 SPS - High-Speed Reading and Low Search TimUp to 100 SPS with high-speed acquisition and reduced search time
- Ultra-high resolution and ultra-low noise performance
- PoE (Power over Ethernet) power and communication interface
- USB-C power and communication interface
- Only 5 W power consumption
- High tolerance to magnetic field gradients
- Up to 4 independent NMR channels
- Suitable for high-radiation environments with no active components inside the probe
- Ultra-compact format and small probe size
- 5-year warranty
Applications
- MRI (manufacturers, installers, maintenance)
- Accelerators & Synchrotrons
- Metrology & Calibration
- Precision physics experiments
