MFM - Magnetic Field Module

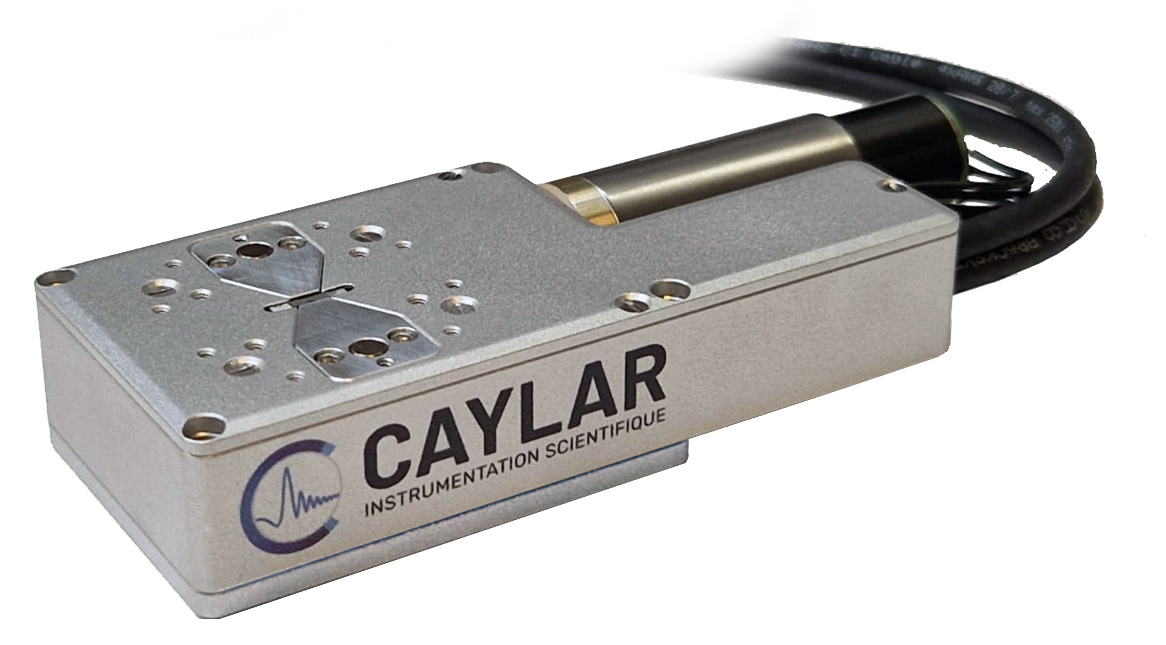

MFG Magnetic Field Generator – Compact, High-Performance, Integrated
The MFG is a compact magnetic field generator designed for Magnetic Force Microscopy (MFM). It provides precise in-plane (±0.6 T) and out-of-plane (±0.2 T) magnetic field control.
Compatible with Park Systems' SmartScan software, it enables fully automated sequential imaging under variable magnetic fields, without affecting AFM performance:Unchanged noise level (<50 pm)
-
No scan distortion or drift
-
No impact on AFM imaging modes
-
Available in high vacuum compatible version
CAYLAR MFM Installed on a NX10 AFM Park Systems
Documents
MFG System - MFM & MFC Manual V24.01
pdf . 7935.79 Ko
MFG System V24 Datasheet v1.00
pdf . 901.62 Ko
View of the 3D mapping of the Out Of Plane pole at 0.2T
Specifications
| Dimensions | 34 Kg |
| Absolute Accuracy | ±0.65 T (±6500 G) |
| Noise measurement | ±0.49 T (±4900 G) |
| Overshoot * (factory settings) | ±0.50 T (±5000 G) |
*PID settings are available to reduice overshoot
In Plane
*At 0.5mm from the surface
| Gap G | Min | Typ | Max |
| Max B range¹ | ±0.55 T | ±0.57 T | ±0.61 T |
| Sensor noise² | 3 µT rms | 26 µT rms | |
| Max regul error | 0 mT | ±0.50 mT | |
| Max regul overshoot¹ | 0 mT | 0.7 mT | |
| Absolute Accuracy¹ | < ± 2 mT |
(1): Mesuré et calibré à 0,3 mm de la surface, centré sur la position de l'échantillon de l'utilisateur par un capteur à effet Hall externe.
(2): Feedback Hall sensor noise: real magnetic field noise is lower than these values and only dependent of thermal noise and system vibrations. (1): Measured and calibrated at 0.3 mm from the surface, centered on the user's sample position by an external Hall sensor.
Out Of Plan
| Min | Typ | Max | |
Max B range¹ (Symmetrie in open loop) | ±0.175 T ±0.195 T | -0.19 T - 0.2 T | -0.195 T +0.21 T |
| Sensor noise² | 10 µT rms | 44 µT rms | |
| Max regul error | 0 mT | ±0.2 mT | |
| Max regul overshoot¹ | 0 mT | 0.3 mT | |
| Absolute Accuracy¹ | < ± 1 mT |
